Install the relays and connect the connectors to the under-dash fuse/relay box (A), then install the under-dash fuse/relay box in the reverse order of removal.

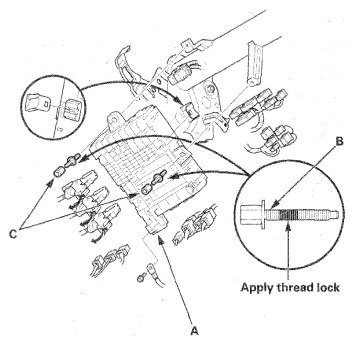

Fig 1: Identifying Under-Dash Fuse/Relay Box, Stud Bolts And Nuts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the double nuts from stud bolts (B), then install the nuts (C) to the stud bolts.
NOTE: Apply high strength type liquid thread lock (Loctite 277 or equivalent) to the stud bolts before reinstallation.
Install the removed parts in the reverse order of removal.
Do the 12 volt battery terminal reconnection procedure (see 12 VOLT BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
If the under-dash fuse/relay box is being replaced, do the following with the HDS.
1. Have a all registered keys and the ECM/PCM code.
2. Connect the HDS to the data link connector (DLC).
3. Turn the ignition switch to ON (II).
4. Select IMMOBI from the System Selection Menu, then select IMMOBILIZER SETUP.
5. Select REPLACE MPCS/MICU/IMOES.
6. Do the registration according to the instructions on the HDS screen.
Confirm that all systems work properly.
