EVAP Canister Vent Shot Valve

The EVAP canister vent shut valve is mounted in the EVAP canister.

The EVAP canister vent shut valve controls venting of the EVAP canister.

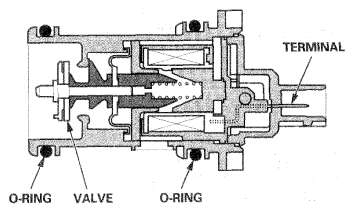

Fig 1: Sectional View Of EVAP Canister Vent Shot Valve

Courtesy of AMERICAN HONDA MOTOR CO., INC.
