EVAP Canister Purge Waive

When the engine coolant temperature is below 140°F (60°C), the ECM/PCM turns off the EVAP canister purge valve, which prevents the purging of the EVAP canister.

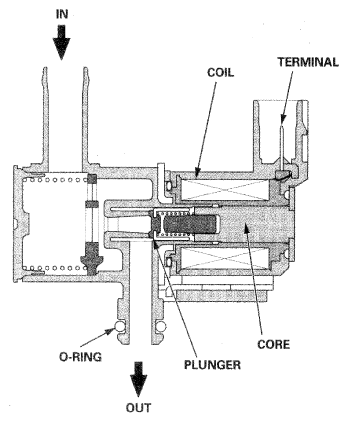

Fig 1: Sectional View Of EVAP Canister Purge Waive

Courtesy of AMERICAN HONDA MOTOR CO., INC.
