Starter Removal and Installation: Removal

Do the 12 volt battery terminal disconnection procedure (see 12 VOLT BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
Remove the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
M/T model: Remove the clutch hose bracket bolts (A) and nut (B).

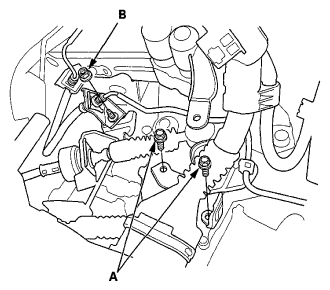

Fig 1: Identifying Clutch Hose Bracket Bolts And Nut (M/T Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
CVT model: Disconnect the solenoid wire harness connector (A) and the CVT input shaft (drive pulley) speed sensor connector (B).

Fig 2: Identifying Clutch Hose Bracket Bolts And Nut (CVT Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the positive starter cable (A) and the harness connector (B) from the S terminal, then remove the heater hose bracket (C) and the harness clamps (D).
M/T model

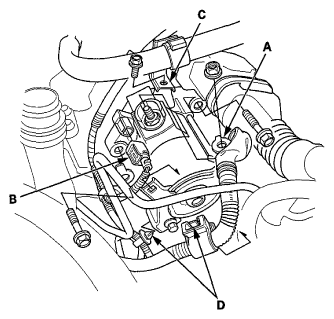

Fig 3: Identifying Positive Starter Cable, Harness Connector, Heater Hose Bracket And Harness Clamps (M/T Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CVT model

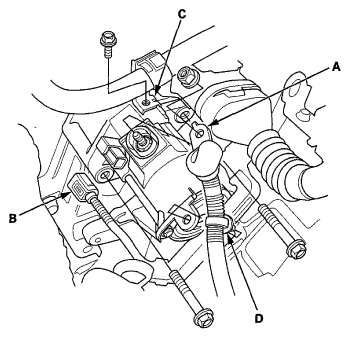

Fig 4: Identifying Positive Starter Cable, Harness Connector, Heater Hose Bracket And Harness Clamps (CVT Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two bolts securing the starter, then remove the starter.
