Intake Manifold Removal and Installation: Removal

  1. Remove the engine cover.

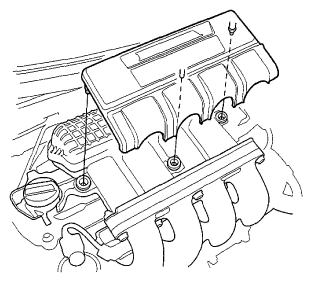

    Fig 1: Identifying Engine Cover
    G06949614Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the EGR valve connector (A) and the PCV hose(B).

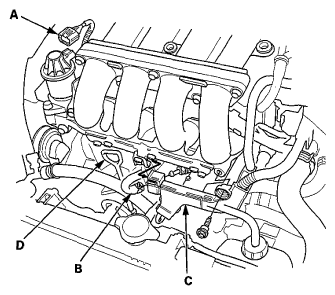

    Fig 2: Identifying EGR Valve Connector, PCV Hose, Engine Wire Harness Holder And Dipstick
    G06949615Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the engine wire harness holder (C) and the dipstick (D).
  4. Remove the intake manifold.

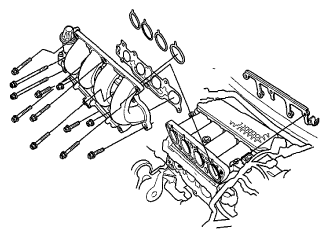

    Fig 3: Identifying Intake Manifold With Mounting Bolts
    G06949616Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Disassemble the intake manifold.
    NOTE: Refer to the EXPLODED VIEW  if needed during this procedure.
