Intake Manifold Chamber Removal and Installation: Installation

Reassemble the intake manifold chamber.
NOTE: Refer to the EXPLODED VIEW if needed during this procedure.
Install the intake manifold chamber (A) with a new gaskets (B), and the intake manifold flange plate (C).
NOTE: Tighten the bolts in a crisscross pattern in three steps, beginning with the inner bolt.

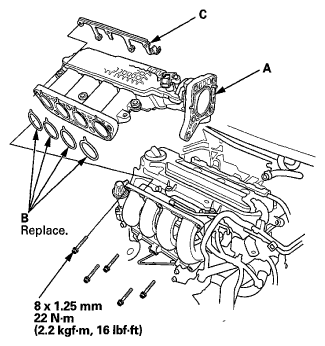

Fig 1: Intake Manifold Chamber And Intake Manifold Flange Plate With Gasket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Loosen the intake manifold mounting bracket bolts (A, B), then loosely install the intake manifold mounting bracket bolts (C, D).

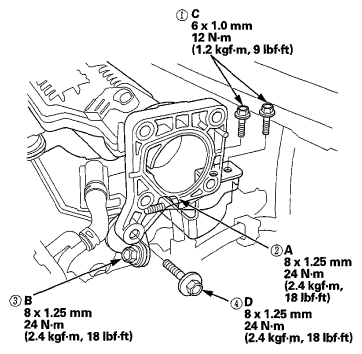

Fig 2: Intake Manifold Mounting Bracket Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Tighten the intake manifold bracket mounting bolts in the numbered sequence shown.
Install the throttle body (A) with a new gasket (B).

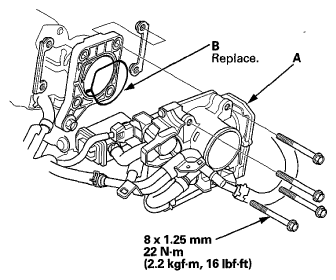

Fig 3: Throttle Body, Gasket And Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

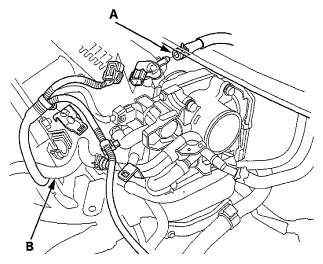

Connect the brake booster vacuum hose (A), and install the water bypass hose (B) to the clamp.

Fig 4: Identifying Brake Booster Vacuum Hose And Water Bypass Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the engine wire harness connectors and wire harness clamps to the intake manifold chamber.
- Throttle actuator connector
- MAP sensor connector
Install the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
Install the engine cover.

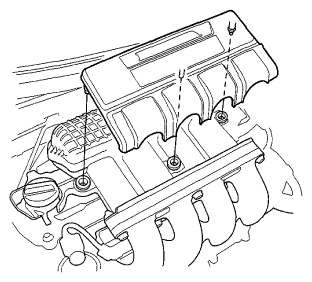

Fig 5: Identifying Engine Cover
