Exhaust Pipe and Muffler Replacement

NOTE: Use new gaskets and self-locking nuts when reassembling.

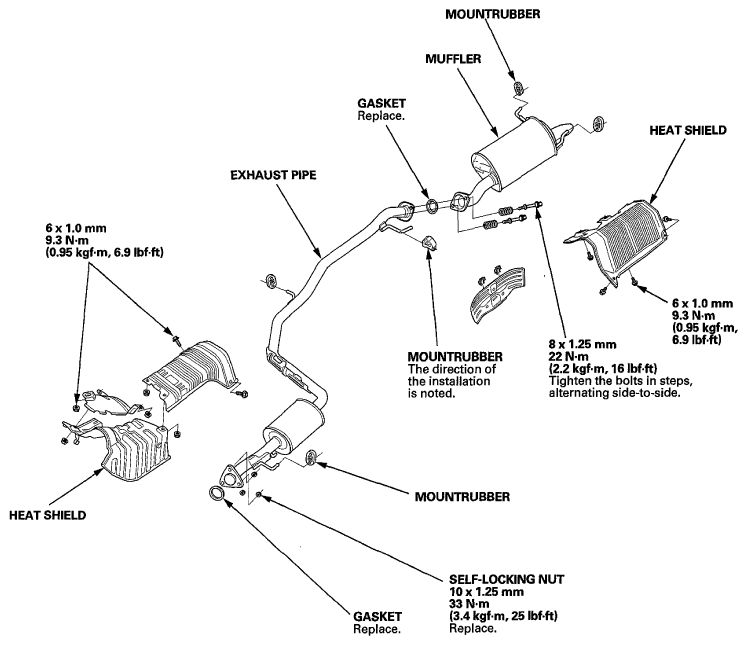

Fig 1: Exhaust Pipe And Muffler Assembly Replacement Components With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
