Valve, Spring, and Valve Seal Installation

Special Tools Required

• Stem Seal Driver 07PAD-0010000
• Valve Spring Compressor Attachment 07757-PJ1010A

1. Coat the valve stems with new engine oil. Install the valves in the valve guides.
2. Check that the valves move up and down smoothly.
3. Install the spring seats on the cylinder head.

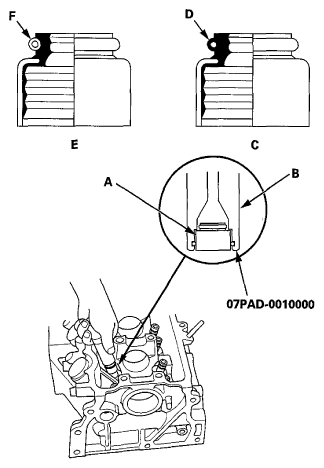

4. Install the new valve seals (A) using the 5.5 mm side of the stem seal driver (B).
   NOTE: The exhaust valve seal (C) has a black spring (D), and the intake valve seal (E) has a white or silver spring (F). They are not interchangeable.
   Fig 1: Installing Valve Seals Using 5.5 mm Side Of Stem Seal Driver

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Install the valve spring. Place the end of the valve spring with the closely wound coils toward the cylinder head.
6. Install the spring retainer.
7. Install the valve spring compressor and the attachment. Compress the spring, and install the valve cotters.
   Fig 2: Compressing Spring, And Install Valve Cotters

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Remove the valve spring compressor and the attachment.
9. Lightly tap the end of each valve stem two or three times with a plastic mallet (A) to ensure proper seating of the valve and the valve cotters. Tap the valve stem only along its axis so you do not bend the stem.
   NOTE: Be sure to raise the head off the work bench so the valve is not possibly damaged.
   Fig 3: Tapping Valve Stem With Plastic Mallet To Ensure Proper Seating Of Valve And Valve Cotters

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
