Rocker Arm and Shaft Disassembly/Reassembly

NOTE:
  • Identify each part as it is removed so that each item can be reinstalled in its original location.
  • Inspect the rocker arm shaft and the rocker arms (see ROCKER ARM AND SHAFT INSPECTION  ).
  • If reused, the rocker arms must be installed in the their original locations.
  • Bundle the rocker arms with rubber bands to keep them together as a set, and remove the bands after the rocker arms have been installed.
  • Remove the rocker shaft bolt before removing the rocker shaft from the No. 5 rocker shaft holder.
  • Prior to reassembling, clean all the parts in solvent, dry them, and apply new engine oil to any contact points, the bearing surfaces.
  • When replacing the rocker arm assembly, remove the fastening hardware from the new rocker arm assembly.
  • When reassembling the rocker arm and shaft assembly, position the arrows on the rocker shaft holders facing the cam chain side.

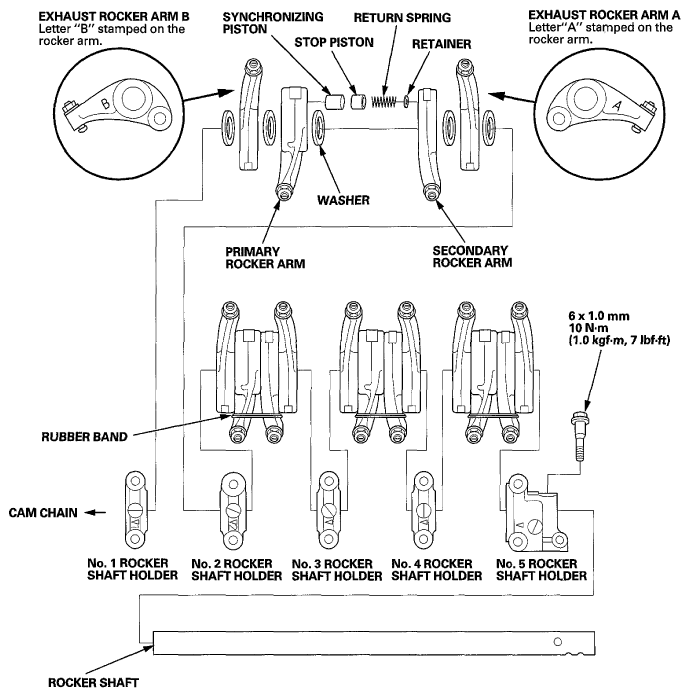

    Fig 1: Exploded View Of Rocker Arm And Shaft
    G06949447Courtesy of AMERICAN HONDA MOTOR CO., INC.
