Component Location Index

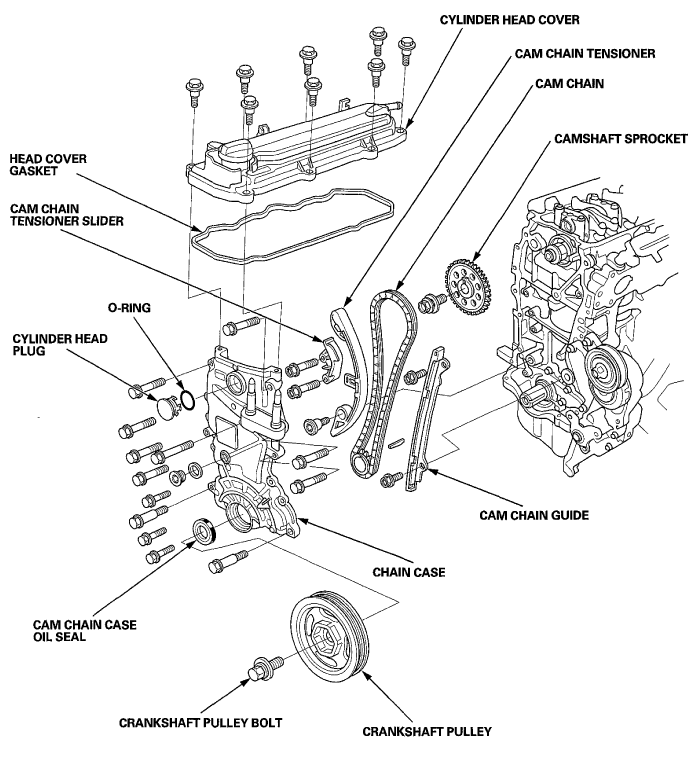

Fig 1: Identifying Cylinder Head Component Location (1 Of 3)
G06949361Courtesy of AMERICAN HONDA MOTOR CO., INC.

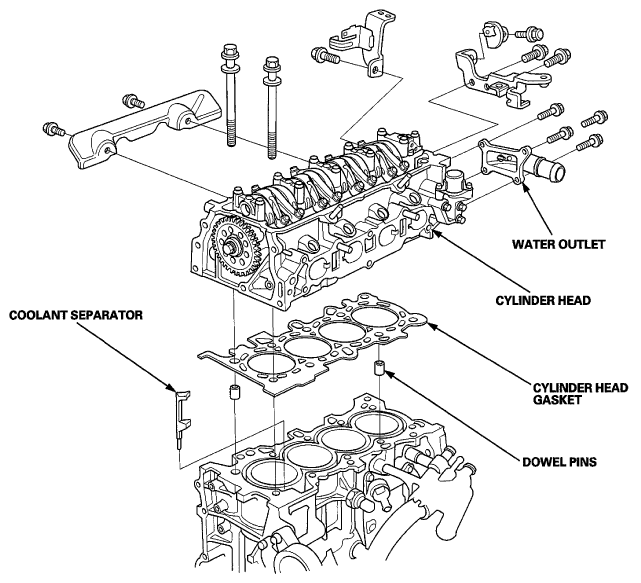

Fig 2: Identifying Cylinder Head Component Location (2 Of 3)
G06949362Courtesy of AMERICAN HONDA MOTOR CO., INC.

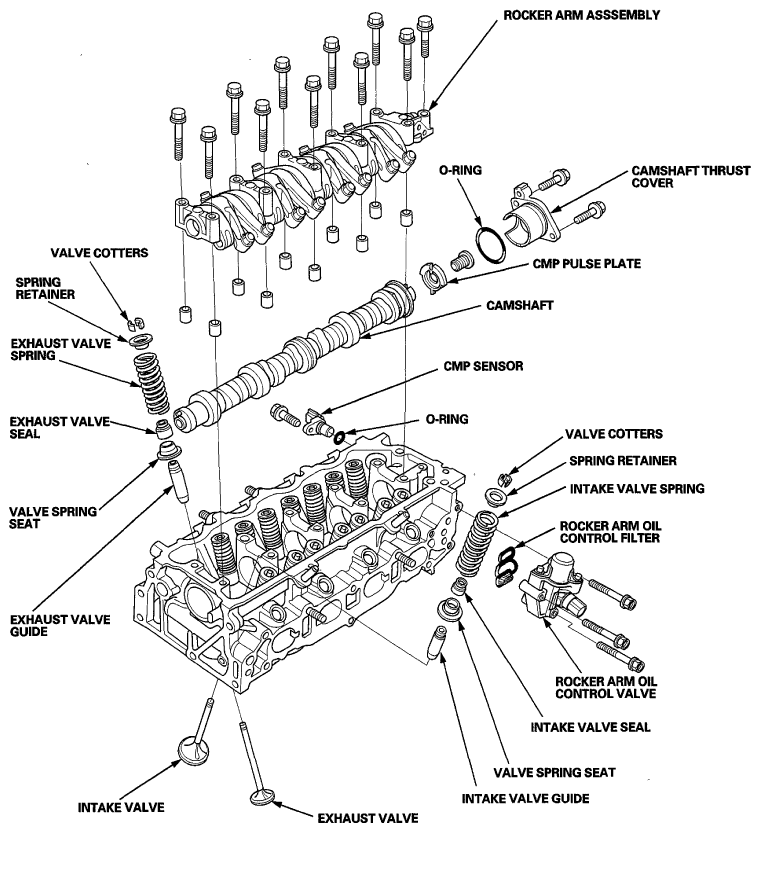

Fig 3: Identifying Cylinder Head Component Location (3 Of 3)
G06949363Courtesy of AMERICAN HONDA MOTOR CO., INC.
