Fan Motor Test

  1. Disconnect the 2P connectors from the radiator fan motor (A) and the A/C condenser fan motor (B).

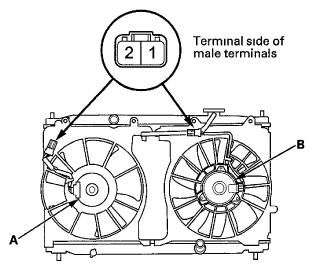

    Fig 1: Identifying Radiator Fan Motor And A/C Condenser Fan Motor Connector Terminal
    G06949638Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Test each motor by connecting battery power to terminal No. 1 and ground to terminal No. 2.
  3. If either motor fails to run, or does not run smoothly, replace it (see REMOVAL  ).
