Front Fog Light Subharness (Canada models) (BI)

CONNECTOR TERMINAL REFERENCE CHART

Connector or Terminal	Ref	Cavities	Location	Connects to	Notes
Right fog light	13	2	Behind right side of front bumper
C104	10	2	Behind right headlight	Right engine compartment wire harness

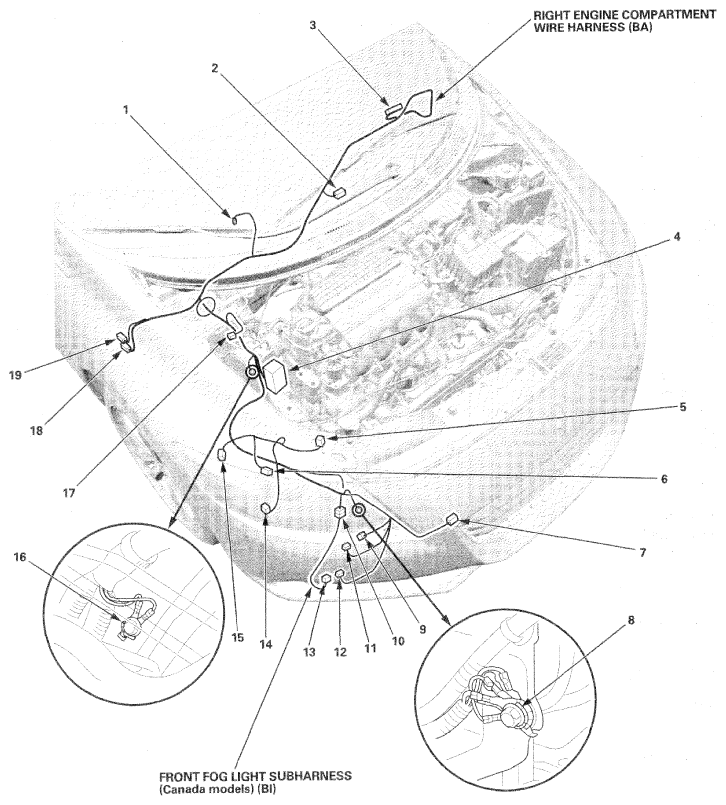

Fig 1: Identifying Front Fog Light Subharess And Right Engine Compartment Wire Harness (BA)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
