DC-DC Converter Ground Cable (GC)

CONNECTOR TERMINAL REFERENCE CHART

Connector or Terminal Ref Cavities Location Connects to Notes
T18 4   Intelligent power unit DC-DC converter
G4 21   Intelligent power unit Body ground, via DC-DC converter ground cable

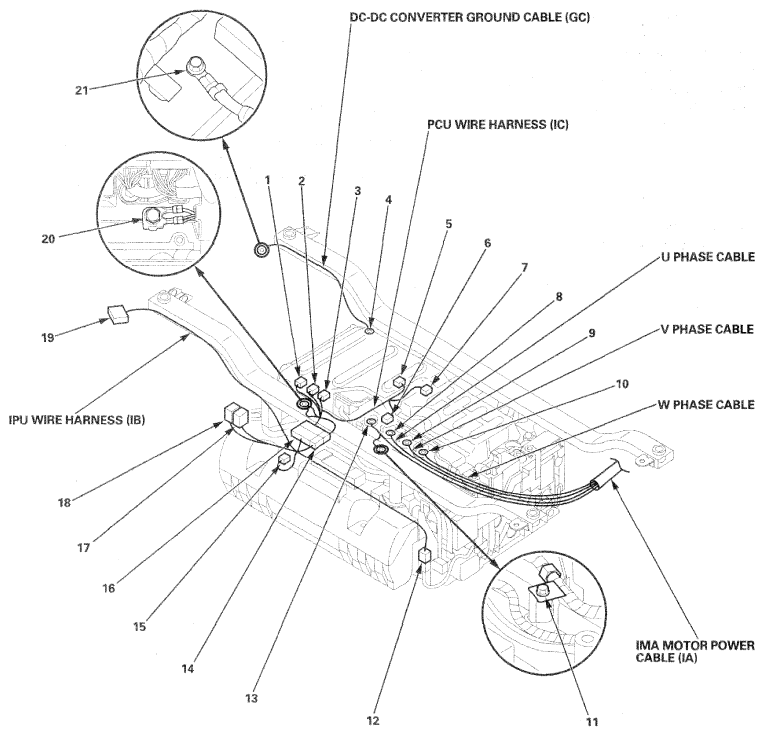

Fig 1: Identifying IPU Wire Harness (IB), IMA Motor Power Cable (IA), DC-DC Converter Ground Cable (GC), PCU Wire Harness (IC)
G06953813Courtesy of AMERICAN HONDA MOTOR CO., INC.
