CVT model

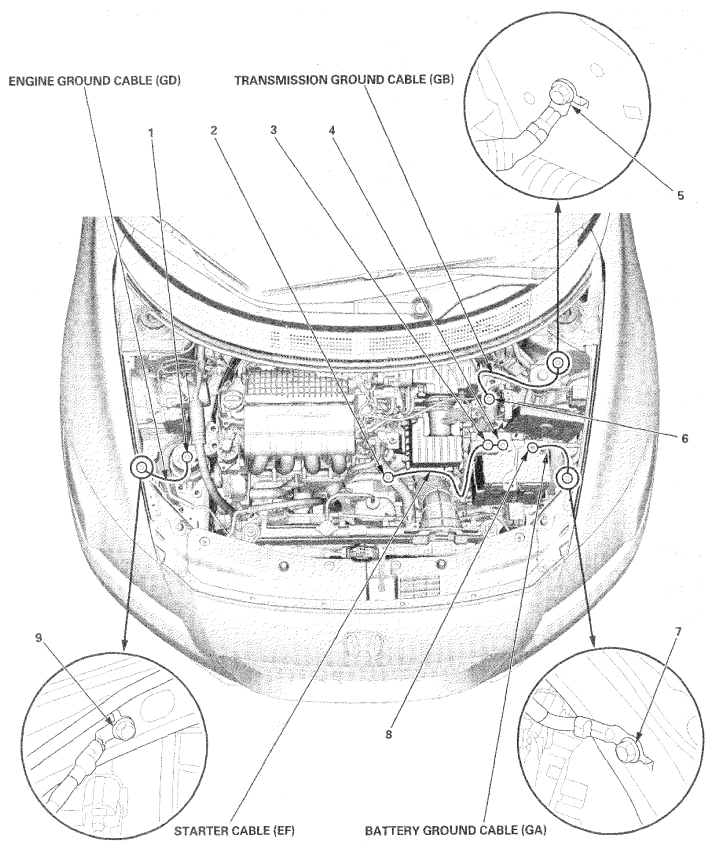

Fig 1: Identifying Engine Ground Cable (GD), Transmission Ground Cable (GB), Starter Cable (EF) And Battery Ground Cable (GA) - CVT Model
G06953801Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: Identifying CKP Sensor Subharness (JA) And Engine Wire Harness (EB) - CVT Model
G06953803Courtesy of AMERICAN HONDA MOTOR CO., INC.
CONNECTOR TERMINAL REFERENCE CHART

Connector or Terminal Ref Cavities Location Connects to Notes
C124 12 13 Left of engine compartment Left engine compartment wire harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS (BF)  )
C127 11 6 Left of engine compartment Left engine compartment wire harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS (BF)  )
C202 8 3 Middle of engine compartment CKP sensor subharness
C203 (Junction connector) 20 24 Middle of engine compartment
C204 (Junction connector) 15 24 Middle of engine compartment
G101 21   Middle of engine compartment Body ground, via engine wire harness

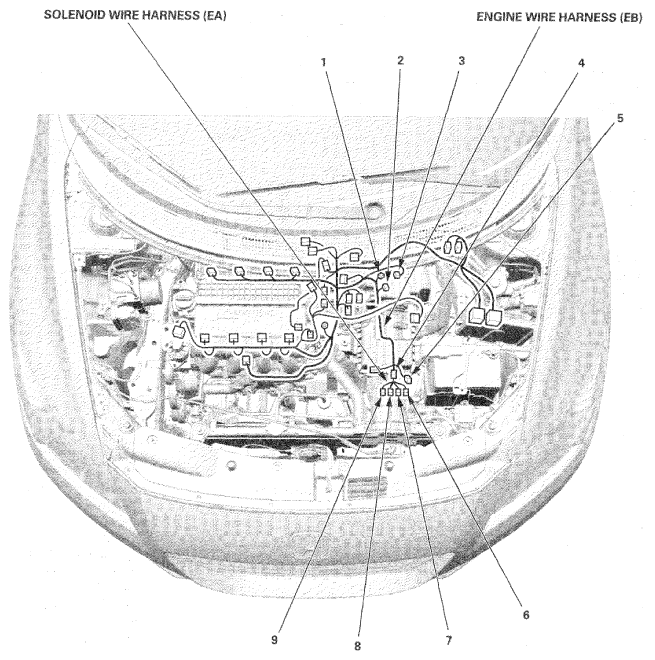

Fig 1: Identifying Solenoid Wire Harness (EA) And Engine Wire Harness (EB)
G06953804Courtesy of AMERICAN HONDA MOTOR CO., INC.
