12 Volt Battery Removal and Installation: Removal

Do the 12 volt battery terminal disconnection procedure (see 12 VOLT BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
Remove the two nuts (A) securing the battery setting plate (B), then remove the battery setting plate and the battery (C).

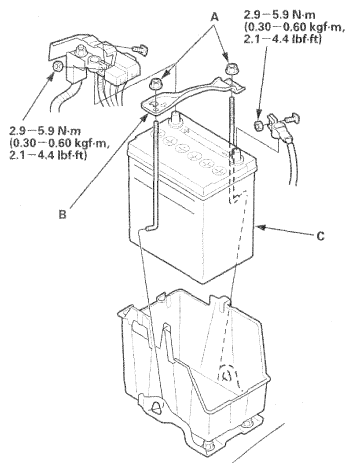

Fig 1: Nuts, Battery And Battery Setting Plate With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
