12 Volt Battery Removal and Installation: Installation

Install the battery (A), then install the battery setting plate (B).

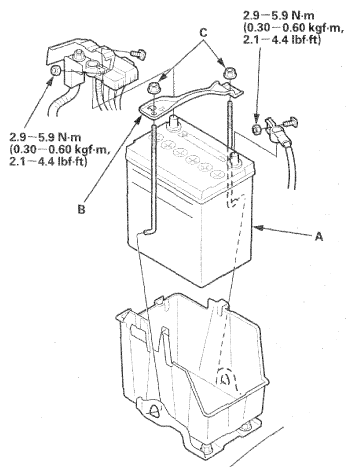

Fig 1: Nuts, Battery And Battery Setting Plates With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Tighten the two nuts (C) equally until the battery is stable.
NOTE: Do not deform the battery hold down plate by over-tightening the nuts.
Do the 12 volt battery terminal reconnection procedure (see 12 VOLT BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
NOTE: Make sure the battery is installed correctly, and the positive terminal and the negative terminal are not connected in reverse.
