Exploded View

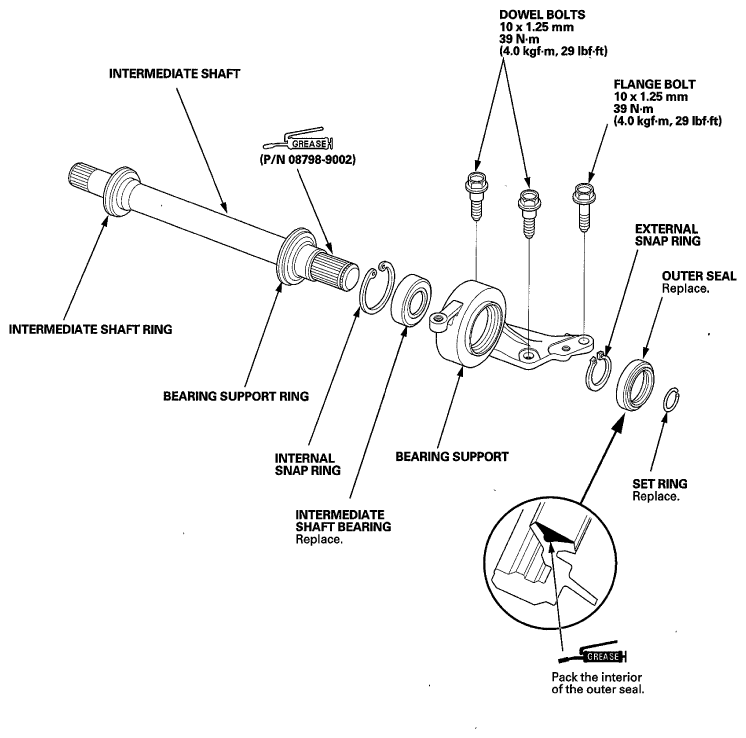

Fig 1: Exploded View Of Intermediate Shaft Assembly With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Oil Seal Driver, 65 mm 07JAD-PL90100
• Oil Seal Driver Attachment 07NAD-P20A100
• Driver, Inner 35 mm I.D. 07746-0030400
• Driver Handle, 15 x 135L 07749-0010000

1. Clean the disassembled parts with solvent, and dry them with compressed air.
   NOTE: Do not wash the rubber parts with solvent.
2. Press a new intermediate shaft bearing (A) into the bearing support (B) using the 15 x 135L driver handle (C), oil seal driver attachment (D), and a press.
   Fig 2: Installing Intermediate Shaft Bearing And Bearing Support Using 15 X 135L Driver Handle

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install the internal snap ring (A) into the groove of the bearing support (B).
   Fig 3: Identifying Internal Snap Ring And Bearing Support

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Press the intermediate shaft (A) into the shaft bearing (B) using the 35 mm inner driver (C) and a press.
   Fig 4: Installing Intermediate Shaft Into Bearing Using 35 mm Inner Driver

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Install the external snap ring (A) in the groove of the intermediate shaft (B).
   Fig 5: Identifying External Snap Ring Intermediate Shaft Groove

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

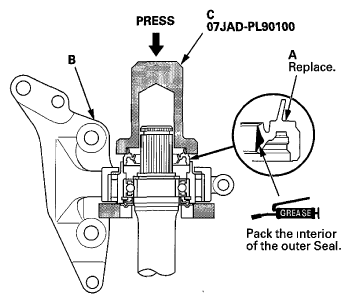

6. Install a new outer seal (A) into the bearing support (B) using the 65 mm oil seal driver (C) and a press. Press in the seal flush with the surface of the bearing support.
   Fig 6: Installing Outer Seal Bearing Support Using 65 Mm Oil Seal Driver

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
