Intermediate Shaft Installation

  1. Clean the areas where the intermediate shaft (A) contact the differential thoroughly with solvent, and dry them with compressed air.
    NOTE: Do not wash the rubber parts with solvent.
    Fig 1: Identifying Intermediate Shaft And Oil Seal
    G06951364Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Insert the intermediate shaft into the differential correctly.
    NOTE: Insert the intermediate shaft carefully to prevent damaging the oil seal (B).
  3. Install the flange bolt (A) and the two dowel bolts (B).

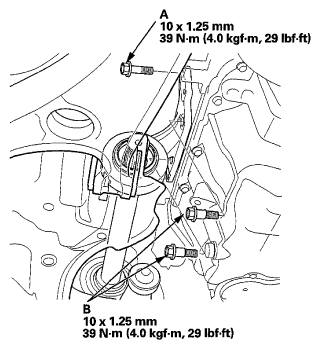

    Fig 2: Flange Bolt And Dowel Bolts With Torque Specifications
    G06951365Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the heat shield (A).
    Fig 3: Heat Shield With Torque Specifications
    G06951366Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the right driveshaft (see DRIVESHAFT INSTALLATION  ).
  6. Refill the transmission with the recommended transmission fluid (see TRANSMISSION FLUID INSPECTION AND REPLACEMENT ).
  7. Check the wheel alignment, and adjust it if necessary (see WHEEL ALIGNMENT ).
  8. Test-drive the vehicle.
