Inboard Joint Side

Wrap the splines with vinyl tape (A) to prevent damaging the inboard boot.

Fig 1: Identifying Splines With Vinyl Tape
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the inboard boot onto the driveshaft, then remove the vinyl tape. Be careful not to damage the inboard boot.
Install the spider (A) onto the driveshaft by aligning the marks (B) you made on the spider and the end of the driveshaft.

Fig 2: Identifying Spider Onto Driveshaft And Circlip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install a new circlip (C) into the driveshaft groove. Always rotate the circlip in its groove to make sure it is fully seated.
Fit the rollers (A) onto the spider (B) as shown, and note these items:
- Reinstall the rollers in their original positions on the spider by aligning the marks (C) you made.
- Hold the driveshaft pointed up to prevent the rollers from falling off.

  Fig 3: Identifying Rollers On Spider
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pack the inboard joint with the joint grease included in the new inboard boot set.
Grease quantity Inboard joint: 90-100 g (3.17-3.53 oz)

Fig 4: Applying Joint Grease On Inboard Joint
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fit the inboard joint onto the driveshaft, and note these items:
- Reinstall the inboard joint onto the driveshaft by aligning the marks (A) you made on the inboard joint and the rollers.
- Hold the driveshaft so the inboard joint is pointing up to prevent it from falling off.

  Fig 5: Aligning Marks To Install Inboard Joint Onto Driveshaft
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

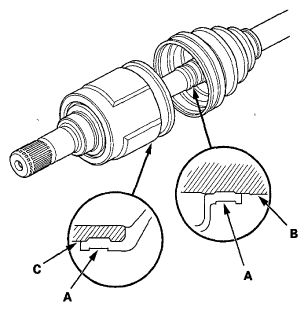

Fit the boot ends (A) onto the driveshaft (B) and the inboard joint (C).

Fig 6: Identifying Boot Ends On Driveshaft And Inboard Joint
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Adjust the length (A) of the driveshafts to the figure as shown, then adjust the boots to halfway between full compression and full extension. Bleed excess air from the boots by inserting a flat-tipped screwdriver between the boot and the joint.

Driveshaft type 1

Fig 7: Identifying Length Of Driveshafts (Dynamic Damper Type 1)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Driveshaft type 2

Fig 8: Identifying Length Of Driveshafts (Dynamic Damper Type 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Driveshaft Length

DRIVESHAFT LENGTH SPECIFICATION

Model	Driveshaft	Type	Specified length (A)
M/T	Left	1	513-518 mm (20.20-20.39 in)
M/T	Right	2	472-477 mm (18.58-18.78 in)
CVT	Left	1	509-514 mm (20.04-20.24 in)
CVT	Right	1	824-829 mm (32.44-32.64 in)

Install new boot bands.
- For the double loop type, go to step 11.
- For the low profile type, go to step 20.
Fit the boot ends onto the driveshaft and the inboard joint, then install a new double loop band (A) onto the boot (B).
NOTE: Pass the end of the new double loop band through the clip (C) twice in the direction of the forward rotation of the driveshaft.

Fig 9: Installing Double Loop Band Onto Boot
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull up the slack in the band by hand.
Mark a line (A) on the band 10-14 mm (0.39-0.55 in) from the clip (B).

Fig 10: Identifying Marked Line On Band Of Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Thread the free end of the band through the nose section of the commercially available boot band tool (KD-3191 or equivalent) (A), and into the slot on the winding mandrel (B).

Fig 11: Tightening Band Using Wrench On Winding Mandrel Of Boot Band Tool
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Using a wrench on the winding mandrel of the boot band tool, tighten the band until the marked line (C) on the band meets the edge of the clip.
Lift up the boot band tool to bend the free end of the band 90 degrees to the clip. Center-punch the clip, then fold over the remaining tail onto the clip.

Fig 12: Lifting Boot Band Tool To Bend Free End Of Band 90 Degrees To Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Unwind the boot band tool, and cut off the excess free end of the band to leave a 5-10 mm (0.20-0.39 in) tail protruding from the clip.

Fig 13: Identifying Excess Free End Of Band
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Bend the band end (A) by tapping it down using a hammer.
NOTE:
- Make sure the band and the clip do not interfere with anything on the vehicle, and the band does not move.
- Clean any grease remaining on the surrounding surfaces.

  Fig 14: Bending Band End Using Hammer
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Repeat steps 11 through 18 for the band on the other end of the boot.
Install a new low profile band (A) onto the boot (B), then hook the tab (C) of the band.

Fig 15: Installing Low Profile Band Onto Boot
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Close the hook portion of the band using a commercially available boot band pliers (A), then hook the tabs (B) of the band.

Fig 16: Closing Hook Portion Of Band Using Boot Band Pliers
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the boot band on the other end of the boot, and repeat steps 20 and 21.
