Parking Brake Inspection and Adjustment: Inspection

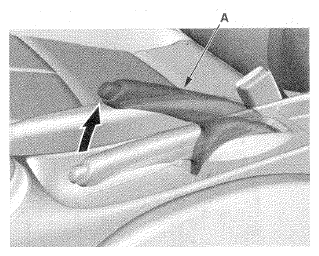

- Pull the parking brake lever (A) with 196 N (20.0 kgf, 44.1 lbf) of force to fully apply the parking brake. The parking brake lever should be locked within the specified number of clicks.
Lever locked clicks: 5 to 7
- If the number of lever clicks is not as specified, adjust the parking brake.
