Master Cylinder Inspection
- Remove the master cylinder (see MASTER CYLINDER REPLACEMENT
).

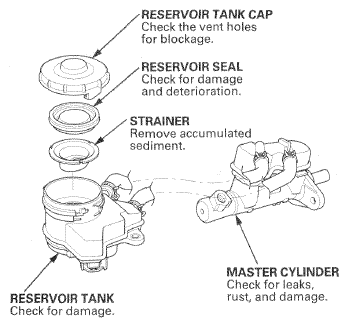

- Inspect and note these items:
- Before reassembling, check that all parts are free of dirt and other foreign particles.
- Do not try to disassemble the master cylinder assembly. Replace the master cylinder assembly with a new part, if necessary.
- Do not allow dirt or foreign matter to contaminate the brake fluid.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the master cylinder (see MASTER CYLINDER REPLACEMENT
).
