Front Brake Disc Replacement

NOTE: Keep grease away from the brake disc and brake pads.
  1. Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
  2. Remove the front wheel.
  3. Remove the brake hose mounting bolts (A).

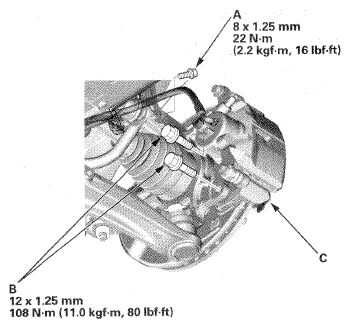

    Fig 1: Brake Hose Mounting Bolts, Brake Caliper Bracket Mounting Bolts And Caliper Assembly With Torque Specifications
    G06953129Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the brake caliper bracket mounting bolts (B), then remove the caliper assembly (C) from the knuckle. To prevent damage to the caliper assembly or brake hose, use a short piece of wire to hang the caliper assembly from the undercarriage. Do not twist the brake hose excessively.
  5. Remove the brake disc flathead screws (A).

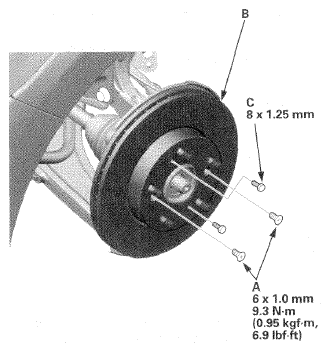

    Fig 2: Brake Disc Flathead Screws, Brake Disc And Bolts With Torque Specifications
    G06953130Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the brake disc (B) from the front hub.
    NOTE: If the brake disc is stuck to the front hub, thread two 8 x 1.25 mm bolts (C) into the brake disc to push it away from the front hub. Turn each bolt 90 degrees at a time to prevent the brake disc from binding.
  7. Install the brake disc in the reverse order of removal.
    NOTE: Before installing the brake disc, clean the mating surfaces between the front hub and the inside of the brake disc.
  8. Inspect the brake disc runout (see RUNOUT  ).
  9. Clean the mating surfaces between the brake disc and the inside of the wheel, then install the front wheel.
