Brake System Indicator Circuit Diagram

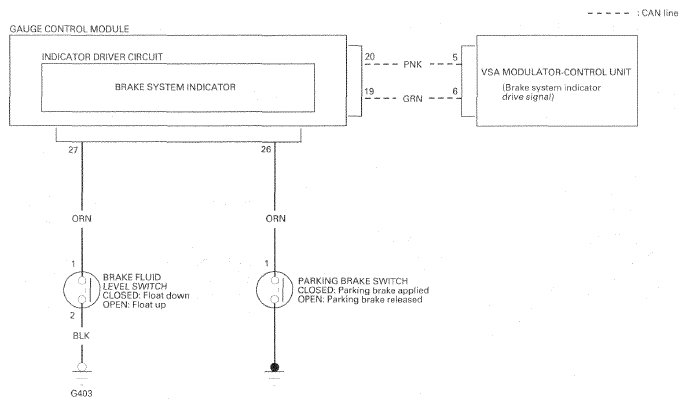

Fig 1: Brake System Indicator Circuit Diagram

G06953114

Courtesy of AMERICAN HONDA MOTOR CO., INC.
