CR-Z Base, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Brakes
>>
Mechanical - Hydraulic
>>
Brake Booster Pressure Monitoring System
>>
Circuit Diagram
Circuit Diagram

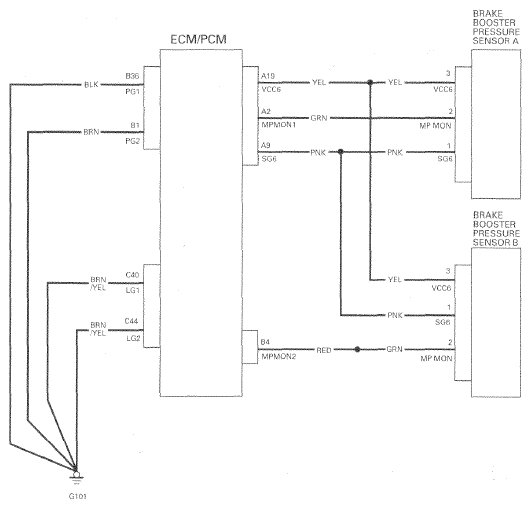

Fig 1: Brake Booster Pressure Sensor Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
