Brake Booster Pressure Sensor A Replacement

Remove the vacuum hose (C) from the vacuum hose bracket (D).

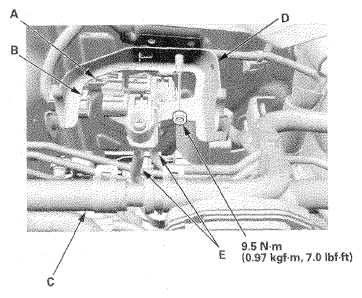

Fig 1: Brake Booster Pressure Sensors, Vacuum Hose Bracket, Vacuum Hose And Vacuum Hose Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the brake booster pressure sensor A 3P connector and the brake booster pressure sensor B 3P connector.
Disconnect the vacuum hoses (E).
Remove the vacuum hose bracket with brake booster pressure sensors A and B from the body.
Remove brake booster pressure sensor A from the vacuum hose bracket (B).

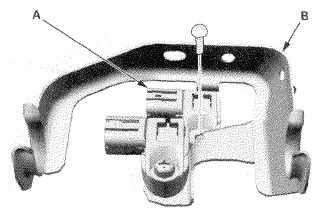

Fig 2: Identifying Brake Booster Pressure Sensor And Vacuum Hose Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the sensor in the reverse order of removal.
