Side sill panel replacement

  1. Remove the side sill panel (A).
    1. Remove the clips (B) from under the panel.
    2. On the rear wheel arch, remove the pin (C) of the clip (D) from the panel.
    3. Slide the side sill panel rearward and remove it. The side clips (E) will stay in the body.
    4. Remove the side clips (E) from the body by turning them 90°.
    5. If necessary, remove the grommet (F) from the body.

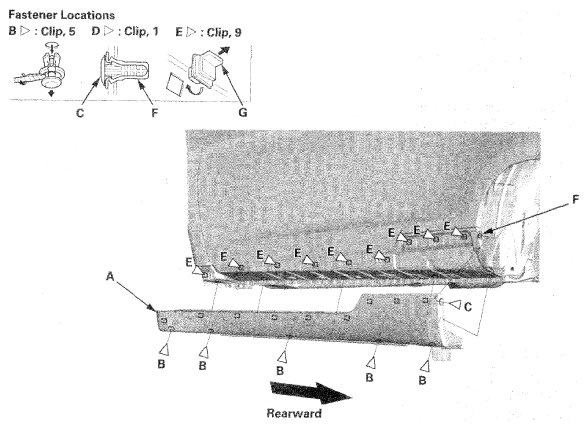

      Fig 1: Removing Side Sill Panel
      G06953563Courtesy of AMERICAN HONDA MOTOR CO., INC.
