Roof Molding Replacement

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program, 888-424-6857

NOTE:

Take care not to scratch the body.
Take care not to bend the roof molding.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

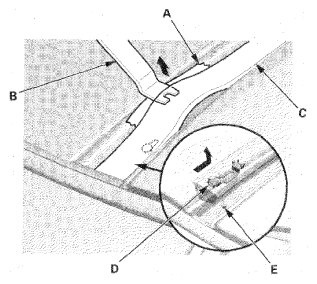

Apply protective tape (A) to the body. Insert the appropriate trim tool (B) into the body and the roof molding (C).

Fig 1: Inserting Trim Tool Into Body And Roof Molding
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull up and slide the roof molding to release the front bracket (D) from the pin (E).
Pull up the front portion of the roof molding (A).

Fig 2: Pulling Up Front Portion Of Roof Molding
Courtesy of AMERICAN HONDA MOTOR CO., INC.

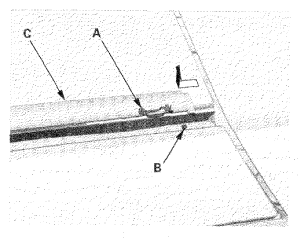

Pull up and release the rear bracket (A) from the pin (B), then remove the roof molding (C).

Fig 3: Pulling Up And Releasing Rear Bracket From Pin
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the molding in the reverse order of removal, and note these items:
- Take care not to damage the windshield molding.
- Make sure the roof molding is installed securely.
