Front Grille Replacement

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program, 888-424-6857

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the front bumper or the related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
Remove the front grille (A).
1. Remove the clips.
2. Detach the hooks (B), then pull out the front grille from the front bumper (C).

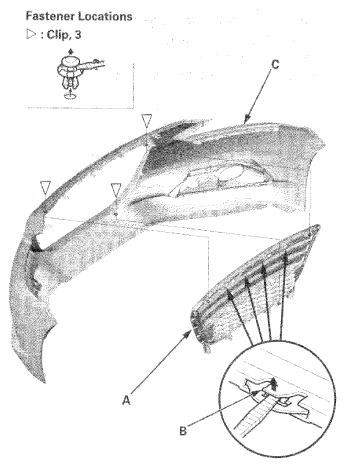

  Fig 1: Removing Front Grill Hooks
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the grille in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
