For some models

NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the front bumper or the related parts.
  • Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Remove the screws and detach the hooks (A), then remove the front bumper side cover (B) from the front bumper (C).

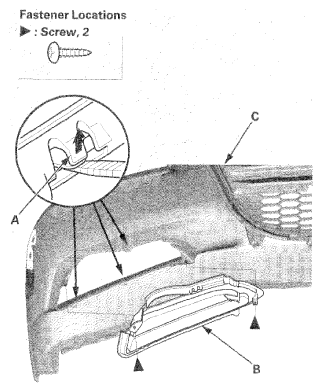

    Fig 1: Removing Front Bumper Side Cover Hooks
    G06953546Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the front bumper side cover in the reverse order of removal, and push the hooks into place securely.
