Emblem/Sticker Replacement

NOTE: When removing the emblems/sticker, take care not to scratch the body.
  1. Clean the body surface with a sponge dampened in isopropyl alcohol. After cleaning, keep oil, grease, and water from getting on the surface.
  2. When installing the AT-PZEP sticker on the inside surface of the left quarter glass, align the sticker with the edge of the black ceramic as shown, then press the sticker into place and remove the application tape.
  3. Apply the emblems/sticker where shown.

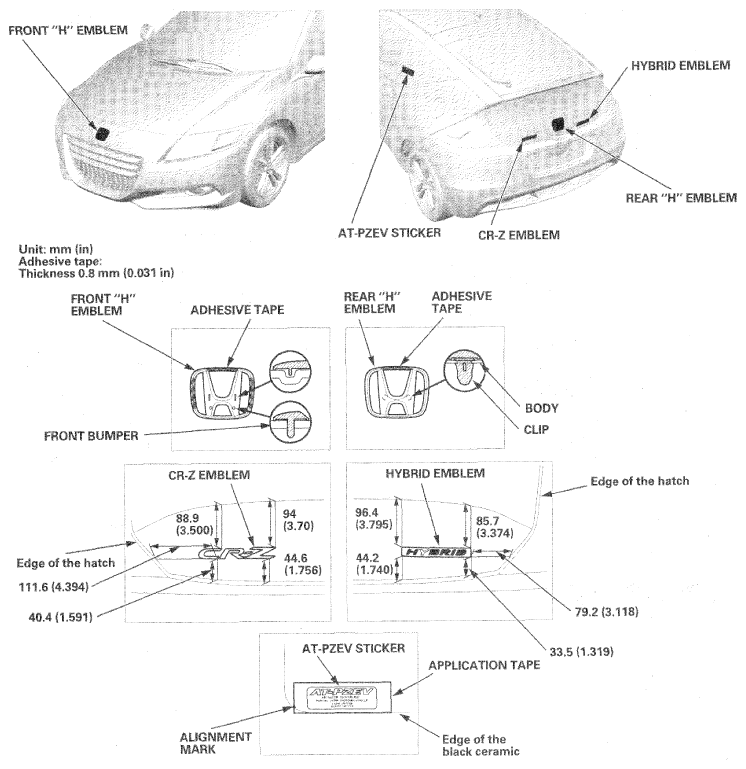

    Fig 1: Identifying Emblem/Sticker Installation Dimension
    G06953564Courtesy of AMERICAN HONDA MOTOR CO., INC.
