Under-cowl panel replacement

  1. 6. If necessary, remove the windshield wiper motor (see WINDSHIELD WIPER MOTOR REPLACEMENT ).
  2. 7. Remove the bolts, then remove the under-cowl panel (A).

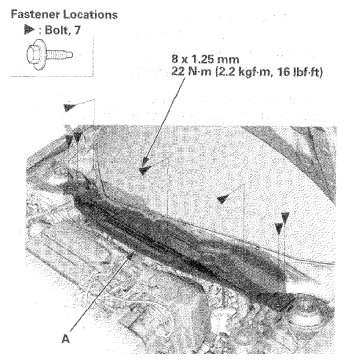

    Fig 1: Under-Cowl Panel And Bolts With Torque Specifications
    G06953556Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. 8. Install the cowl cover in the reverse order of removal, and note these items:
    • If the clips are damaged or stress-whitened, replace them with new ones.
    • Push the clips and the hooks into place securely.
    • Make sure the washer tube is connected securely.
