Component Location Index: Front

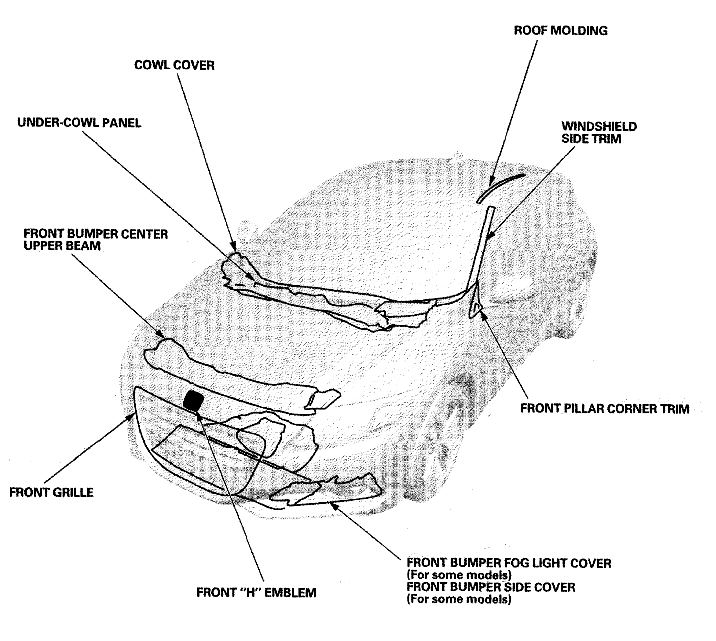

Fig 1: Identifying Exterior Trim Component Location - Front

G06953541

Courtesy of AMERICAN HONDA MOTOR CO., INC.
