Hood Insulator Replacement

NOTE: Take care not to scratch the hood.
  1. Detach the clips with a clip remover, then remove the hood insulator (A).

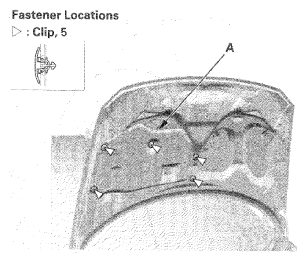

    Fig 1: Identifying Hood Insulator With Clip
    G06953526Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the hood insulator in the reverse order of removal, and note these items:
    • If the clips are damaged or stress-whitened, replace them with new ones.
    • Push the clips into place securely.
