Rear Spring Seat Lower Cover Replacement

NOTE:

Take care not to scratch the body or the related parts.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the screw, the clip and detach the hook (A), then remove the rear spring seat lower cover (B).
NOTE: To release the clip, pry up on the center pin at the notch (C).

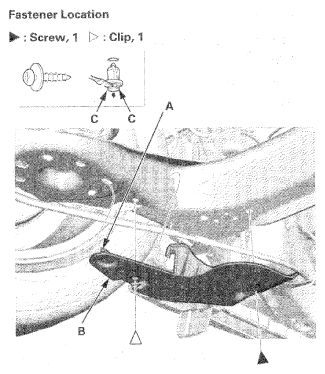

Fig 1: Identifying Rear Spring Seat Lower Cover, Hook And Notch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the cover in the reverse order of removal, and note these items:
- If the clip is damaged or stress-whitened, replace it with a new one.
- Push the clip and the hook portions into place securely.
