Right side

NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the rear bumper or the related parts.
  • When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
  1. Remove the screws and the clips (A, B), then remove the rear fender cover (C).
    NOTE: To release the clips, pry up on the center pin at the notch (D).

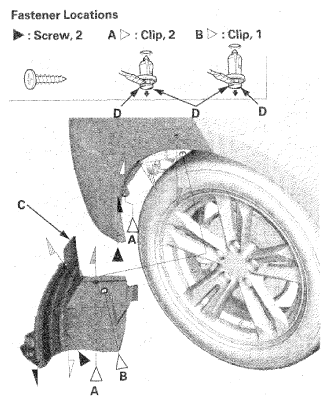

    Fig 1: Identifying Rear Fender Cover, Clips And Notch With Screws And Clips
    G06953578Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the rear fender cover in the reverse order of removal, and note these items:
    • If the clips are damaged or stress-whitened, replace them with new ones.
    • Push the clips into place securely.
