Fuel Fill Pipe Cover Replacement

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body or the related parts.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the left rear wheel.
Remove the clips, then remove the fuel fill pipe cover (A).
NOTE: To release the clip, pry up on the center pin at the notch (B).

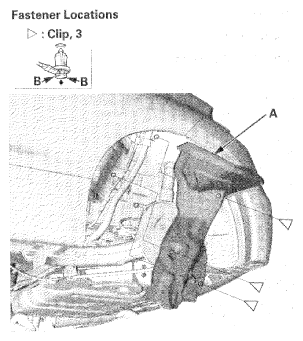

Fig 1: Identifying Fuel Fill Pipe Cover And Notch With Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the fuel fill pipe cover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
Reinstall the left rear wheel.
