Right side

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body or the related parts.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the bolts and clips, then remove the right front floor undercover (A).
NOTE: To release the clips, pry up on the center pin at the notch (B).

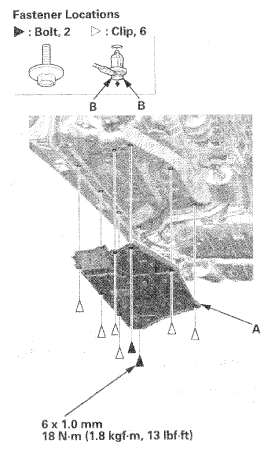

Fig 1: Right Front Floor Undercover And Notch With Bolts And Clips With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the right front floor undercover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
