Front Bumper Air Guide Replacement

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body or the related parts.
When prying with a flat-tip screwdriver, wrapped it with protective tape to prevent damage.

Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
Remove the bolt and the clips (A, B), then remove the front bumper air guide (C).
NOTE:
- To release the clips, pry up on the center pin at the notch (D).
- If necessary, release the hooks (E), then remove the clip.

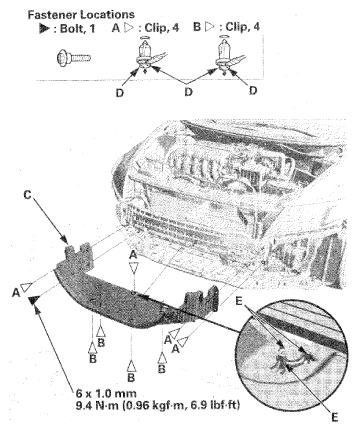

  Fig 1: Front Bumper Air Guide, Clips, Hooks And Notch With Torque Specifications
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the front bumper air guide in the reverse order of removal, and note these items.
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
