Front Bulkhead Lower Cover Replacement

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body or the related parts.
When prying with a flat-tip screwdriver, wrapped it with protective tape to prevent damage.

Remove the clips (A, B) and the screws, then remove the front bulkhead lower cover (C) from the front bulkhead.
NOTE:
- To release the clips, pry up on the center pin at the notch (D).
- If necessary, release the hooks (E), then remove the clip.

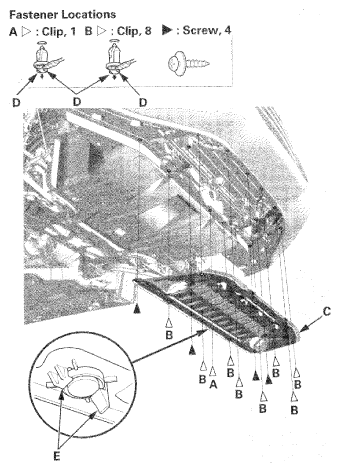

  Fig 1: Identifying Front Bulkhead Lower Cover, Clips, Hooks And Notch
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the front bulkhead lower cover in the reverse order of removal, and note these items.
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and hooks into place securely.
