Rear Window

NOTE: If there is malfunction of rear window wiper operation, and no DTCs are stored, check the rear window wiper motor and an open in the ground circuit of the rear window wiper (see step  10 ).
  1. Open the hatch, and remove the hatch lower trim panel (see TRIM REMOVAL/INSTALLATION - HATCH AREA ).
  2. Disconnect the 4P connector (A) from the wiper motor (B).

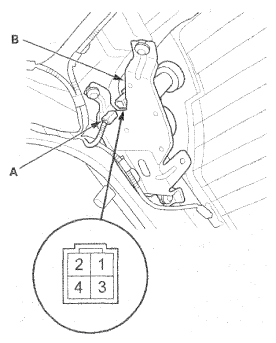

    Fig 1: Identifying Wiper Motor And 4P Connector
    G06954083Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Test the motor by connecting battery power to terminal No. 2 and ground terminal No. 4 of the wiper motor. The motor should run. If the motor does not run or fails to run smoothly, replace the motor.
  4. Connect an analog ohmmeter between rear window wiper motor 4P connector terminals No. 3 and No. 4. The ohmmeter should indicate continuity and no continuity alternately. If it does not, replace the motor.
