Wiper Arm/Nozzle Adjustment

NOTE:

Adjust the washer nozzles by gently gripping, and then moving, the outside of each nozzle (A).
Do not insert tools into the nozzle hole (B), as it may cause the washer fluid to spray incorrectly.

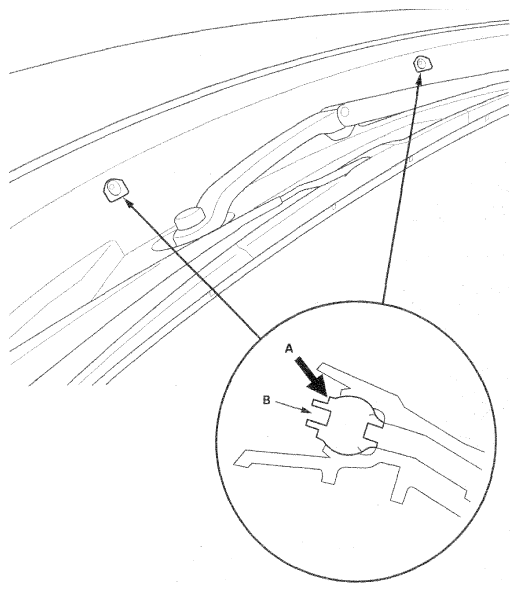

Fig 1: Identifying Nozzle And Nozzle Hole
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Wiper arms stop position

When the wiper arms stop at the automatic stop position, make sure that they are at the standard position.
Windshield
1. Position at about 45.9 mm (1.807 in) from the top of cowl cover (A).
2. Position at about 31.9 mm (1.255 in) from the top of cowl cover (A).
  Rear Window
3. Position at about 22.4 mm (0.881 in) from the black ceramic area (C).
Washer nozzle position
When you turn on the washers, make sure 50 % or more of the washer fluid lands within the spray area. If the spray area is not within the standard positions, adjust the nozzles.
Windshield
1. d: Position at about 501 mm (19.72 in) from the top of the cowl cover (A).
2. e: Position at about 585 mm (23.03 in) from the top of the cowl cover (A).
3. f: Position at about 532 mm (20.94 in) from the top of the cowl cover (A).
4. g: 200 mm (7.87 in) from the windshield center line (B).
5. h: 400 mm (15.74 in) from the windshield center line (B).
6. i: 400 mm (15.74 in) from the windshield center line (B).
  Rear Window
7. j: Position at about 62.4 mm (2.456 in) from the top of the black ceramic area (D).
8. k: Position at about 93.4 mm (3.677 in) from the top of the black ceramic area (D).
9. l: Position at about 90.2 mm (3.551 in) from the rear window center line (E).
10. m: Position at about 10.7 mm (0.421 in) from the rear window center line (E).

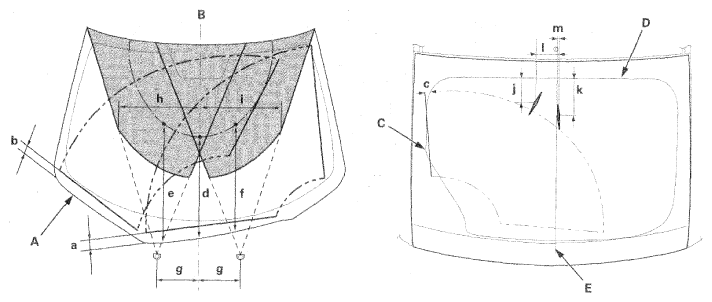

  Fig 2: Identifying Washer Fluid Spray Area
