Washer Reservoir Replacement

Remove the front bumper center upper beam (see FRONT BUMPER CENTER UPPER BEAM REPLACEMENT ).
Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
Remove the headlight (see HID UNIT REPLACEMENT ).
Disconnect the 2P connector (A) from the washer motor (B).
Washer Reservoir Capacity:

2.5 L (2.6 US qt): USA models

4.85 L (5.1 US qt): Canada models

NOTE: The illustration shows USA models.

Fig 1: Identifying 2P Connector, Washer Motor, Washer Tubes And Washer Reservoir
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the washer tubes (C) from the washer motor.
NOTE: Fluid may flow out of the opening.
Canada models:
Disconnect the 2P connector (A) from the washer fluid level switch (B), and remove the washer fluid level switch.

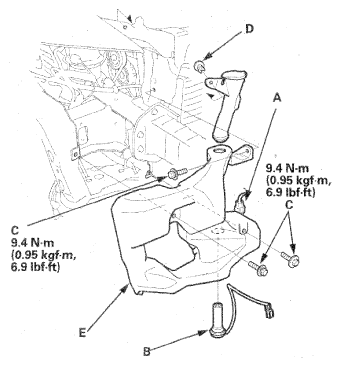

Fig 2: 2P Connector, Washer Fluid Level Switch And Washer Fluid Level Switch With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the three bolts (C) and the clip (D), then remove the washer reservoir (E).
USA models;
Remove the two bolts (A) and clip (B), then remove the washer reservoir (C).

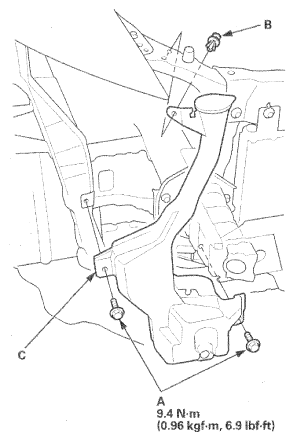

Fig 3: Washer Reservoir, Bolts And Clip With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the washer reservoir in the reverse order of removal. Check the washer motor operation.
