DTC B1077: Windshield Wiper Motor (Park) Signal Error

NOTE: If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A ).

Clear the DTCs with the HDS.
Turn the ignition switch to LOCK (0) and then back to ON (II).
Turn the windshield wiper switch to LOW or HIGH for at least 15 seconds, then turn the switch OFF.
Does the wiper motor work?

YES -Go to step 4.

NO -Go to step 13.
Check for DTCs with the HDS.
Is DTC B1077 indicated?

YES -Go to step 5.

NO -Intermittent failure, the windshield wiper system is OK at this time. Check for loose or poor connections.
Turn the ignition switch to LOCK (0).
Do the windshield wiper motor test (see WIPER MOTOR TEST ).
Does the wiper motor run and does it pulse normally?

YES -Go to step 7.

NO -Replace the windshield wiper motor (see WINDSHIELD WIPER MOTOR REPLACEMENT ), and recheck.
Disconnect the windshield wiper motor 5P connector.
Disconnect the under-dash fuse/relay box connector B (36P).
Check for continuity between windshield wiper motor 5P connector terminal No. 3 and under-dash fuse/relay box connector B (36P) terminal No. 9.

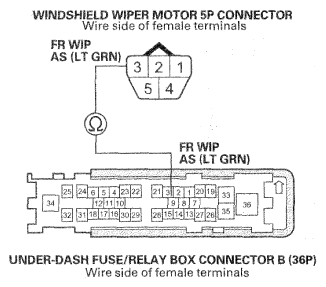

Fig 1: Checking Continuity Between Windshield Wiper Motor 5P Connector Terminal No. 3 And Under-Dash Fuse/Relay Box Connector B (36P) Terminal No. 9
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Go to step 10.

NO -Repair an open or high resistance in the wire.
Check for continuity between windshield wiper motor 5P connector terminal No. 3 and body ground.

Fig 2: Checking Continuity Between Windshield Wiper Motor 5P Connector Terminal No. 3 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Repair a short to ground in the wire.

NO -Go to step 11.
Turn the ignition switch to ON (II).
Measure the voltage between windshield wiper motor 5P connector terminal No. 3 and body ground.

Fig 3: Measuring Voltage Between Windshield Wiper Motor 5P Connector Terminal No. 3 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there voltage?

YES -Repair a short to power in the wire.

NO -Faulty MICU; replace the under-dash fuse/relay box.
- USA models (see REMOVAL AND INSTALLATION )
- Canada models (see CANADA MODELS )
Turn the ignition switch to LOCK (0).
Check the No. B56 (30 A) fuse in the under-dash fuse/relay box.
Is the fuse OK?

YES -Go to step 15.

NO -Replace the fuse, and recheck the system.
Do the windshield wiper motor test (see WIPER MOTOR TEST ).
Does the wiper motor run normally?

YES -Go to step 16.

NO -Replace the windshield wiper motor (see WINDSHIELD WIPER MOTOR REPLACEMENT ), and recheck.
Disconnect the under-dash fuse/relay box connector A (36P) and the windshield wiper motor 5P connector.

Check for continuity between under-dash fuse/relay box connector A (36P) terminals and windshield wiper motor 5P connector terminals as shown:

CONTINUITY SPECIFICATION

Under-dash fuse/relay box connector A (36P)	Windshield wiper motor 5P connector
19	1
23	4

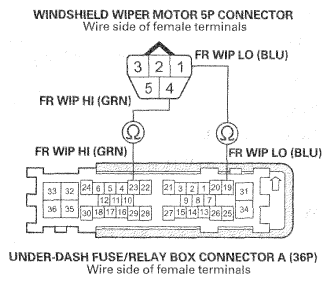

Fig 4: Checking Continuity Between Under-Dash Fuse/Relay Box Connector A (36P) Terminals And Windshield Wiper Motor 5P Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Go to step 18.

NO -Repair an open or high resistance in the BLU (low) or GRN (high) wire.

Check for continuity between windshield wiper motor 5P connector terminal No. 5 and body ground.

Fig 5: Checking Continuity Between Windshield Wiper Motor 5P Connector Terminal No. 5 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Faulty MICU; replace the under-dash fuse/relay box.
- USA models (see REMOVAL AND INSTALLATION )
- Canada models (see CANADA MODELS )
NO -Repair an open in the wire or poor ground (G401).
