Circuit Diagram - Windshield
Circuit Diagram - Windshield

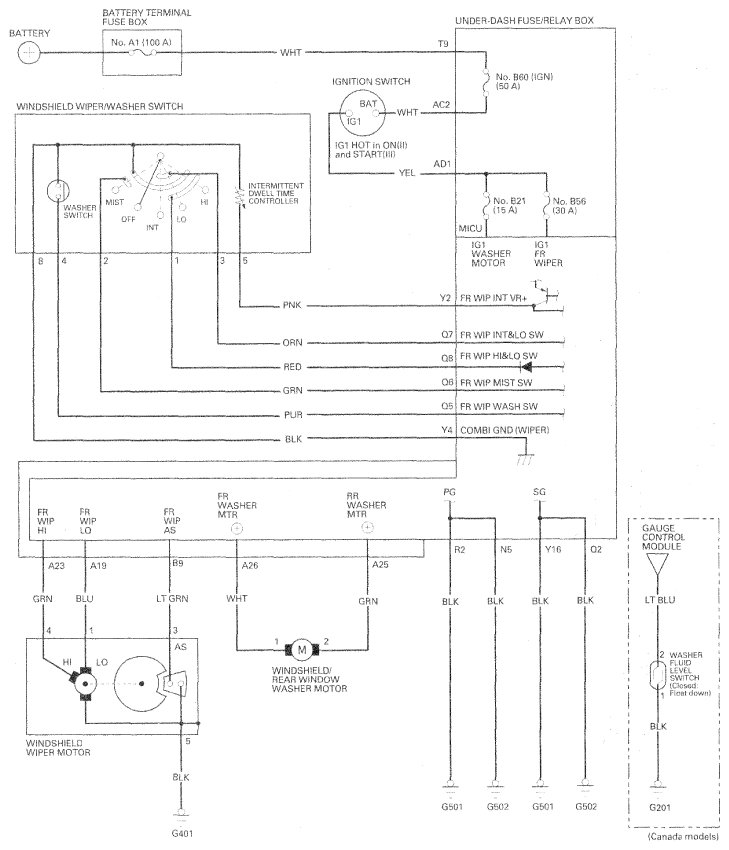

Fig 1: Circuit Diagram - Windshield
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
