Circuit Diagram - Rear Window
Circuit Diagram - Rear Window

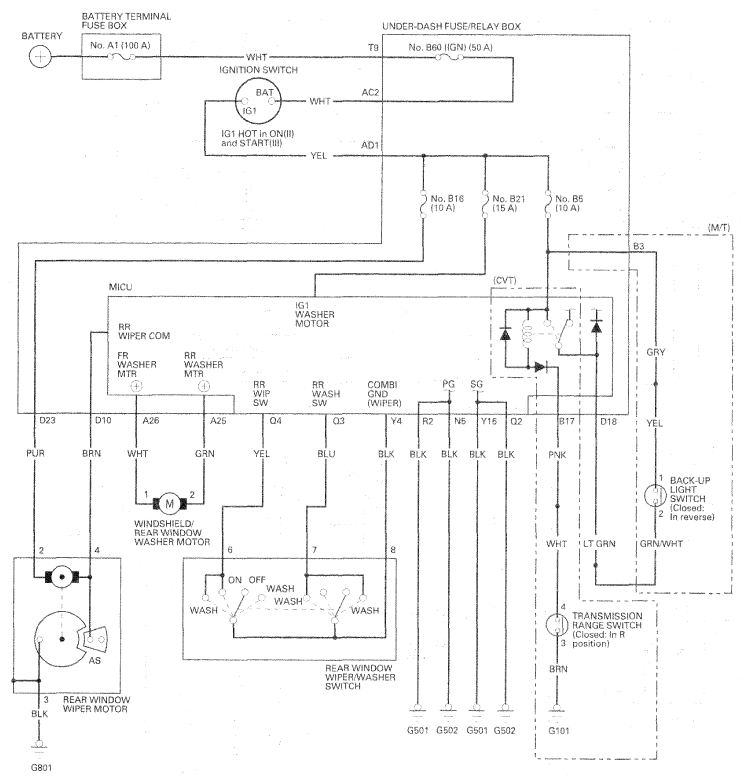

Fig 1: Circuit Diagram - Rear Window
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
