Key Interlock Solenoid Test

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.

1. Remove the steering column covers (see COLUMN COVER REMOVAL/INSTALLATION ).
2. Disconnect the steering lock 6P connector (A).

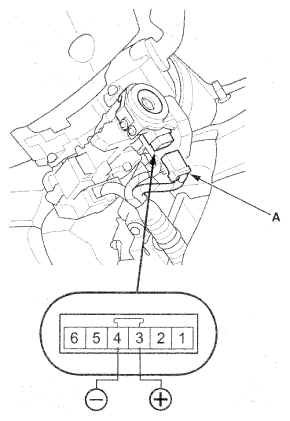

   Fig 1: Identifying Steering Lock 6P Connector Terminals

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Insert the ignition key in the key cylinder, then turn the ignition key to ACCESSORY (I).
4. Connect battery voltage to terminal No. 3 of the steering lock, and ground terminal No. 4, then try turning the ignition switch to LOCK (0); the ignition switch should not turn.
5. Disconnect the power and ground from terminals, then turn the ignition switch to LOCK (0) and remove the key; the ignition switch should turn and the key can be removed.
6. If the key interlock solenoid does not work as specified, replace the steering lock (see STEERING LOCK REPLACEMENT ).
