Ignition Switch Test

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.

1. Do the 12 volt battery terminal disconnection procedure (see 12 VOLT BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
2. Remove the steering column covers (see COLUMN COVER REMOVAL/INSTALLATION ).

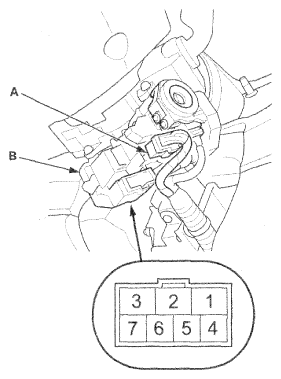

3. Disconnect the 7P connector (A) from the ignition switch (B).
   Fig 1: Identifying Ignition Switch 7P Connector Terminals

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Check for continuity between the terminals in each switch position according to the table.
   Fig 2: Ignition Switch Continuity Chart

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. If the continuity is not as specified, replace the ignition switch (see IGNITION SWITCH REPLACEMENT  ).
6. Do the 12 volt battery terminal reconnection procedure (see 12 VOLT BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
