Home >> Honda >> 2013 >> CR-Z Base, Automatic CVT Trans >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Interior Lights >> Component Location Index

Component Location Index

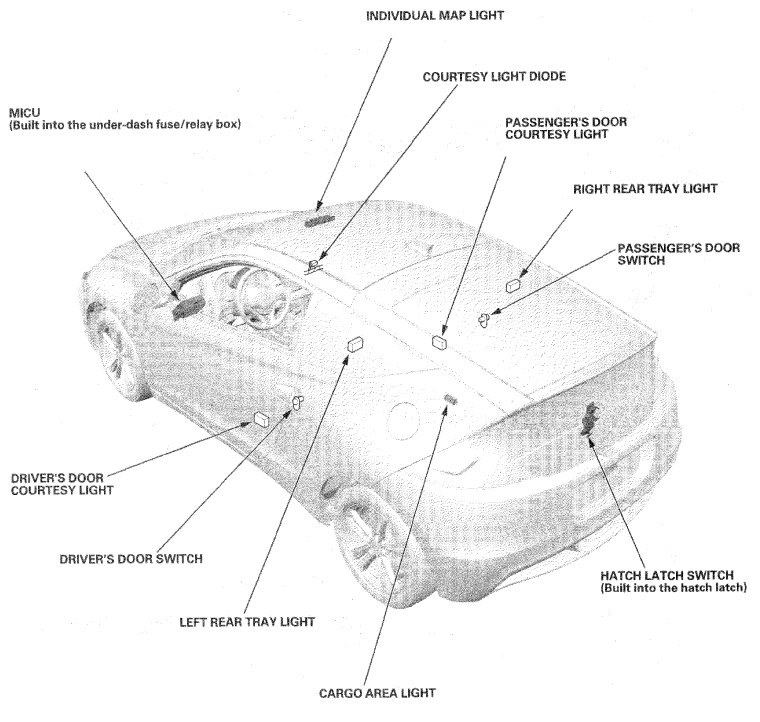

Fig 1: Interior Lights Components Location (1 Of 2)
G06954014Courtesy of AMERICAN HONDA MOTOR CO., INC.

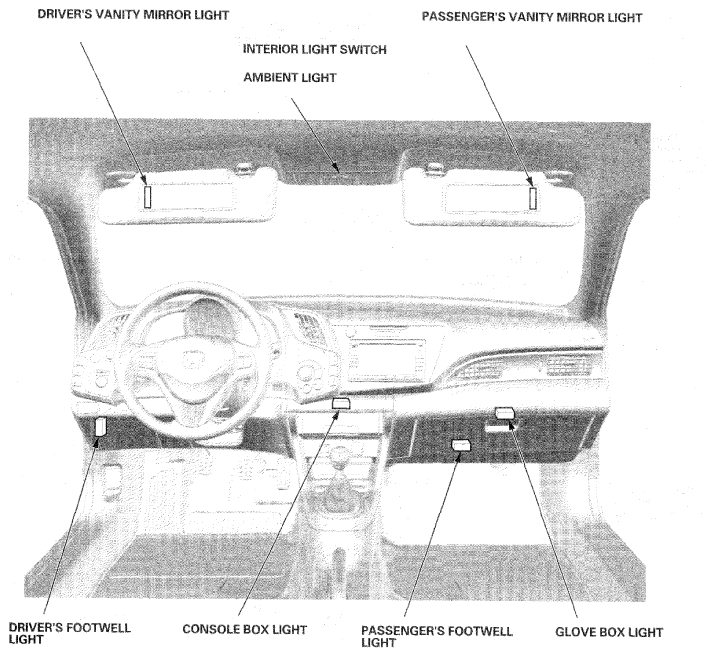

Fig 2: Interior Lights Components Location (2 Of 2)
G06954015Courtesy of AMERICAN HONDA MOTOR CO., INC.
