CR-Z Base, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Interior/Illumination Lights
>>
Interior Lights
>>
Circuit Diagram
Circuit Diagram

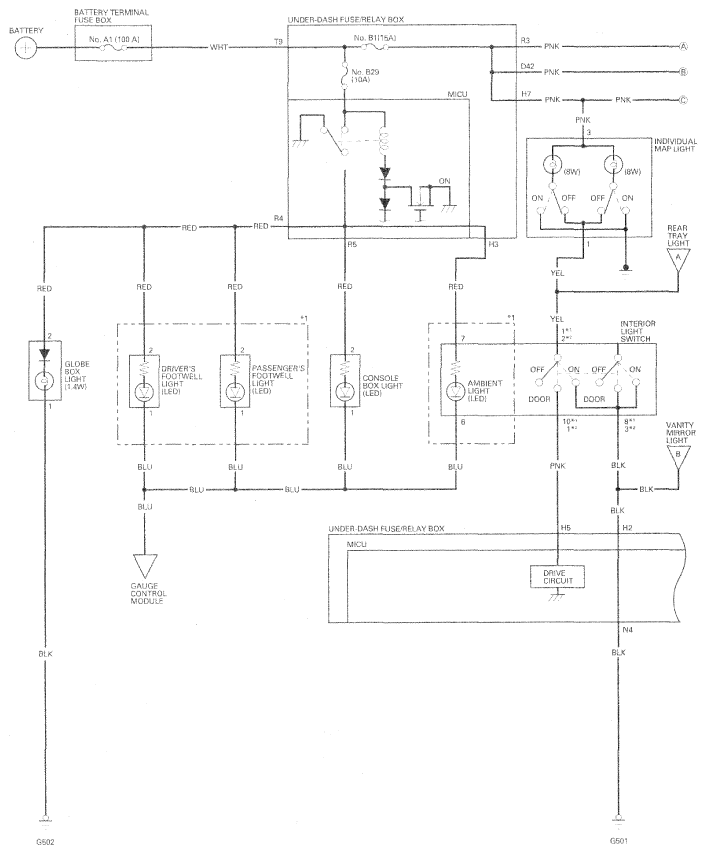

Fig 1: Interior Lights - Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

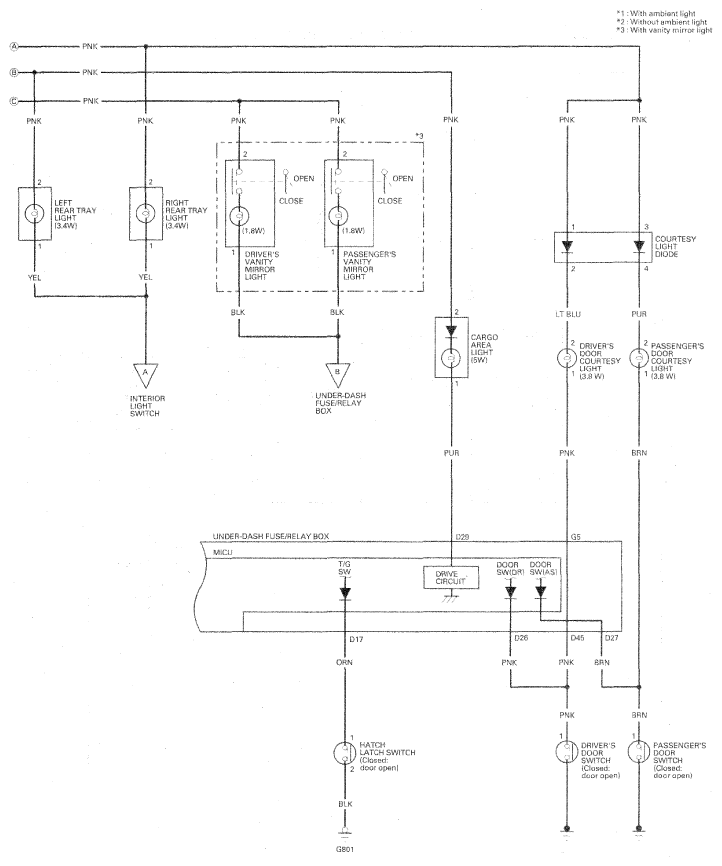

Fig 2: Interior Lights - Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
