Entry Lights Control System
>>
Circuit Diagram
Circuit Diagram

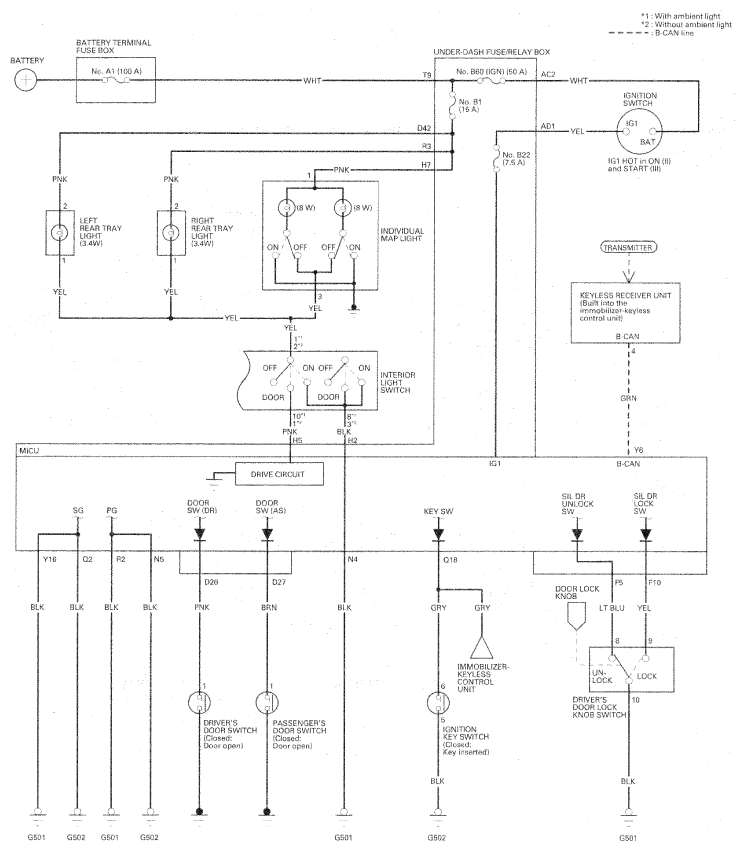

Fig 1: Entry Lights Control System - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
